High-Throughput Valve Injection with Backflush Rinsing
Maximize Uptime
Syringe-driven backflush clears particulates during analysis, preventing clogs and reducing maintenance
Ultra-High Throughput
Rapid sample analysis processing without sacrificing rinse out performance
Enhanced Rinse-Out
Efficient rinsing between samples improves analytical reliability without wasting rinse solution
Maximize Uptime
Syringe-driven backflush clears particulates during analysis, preventing clogs and reducing maintenance
Ultra-High Throughput
Rapid sample analysis processing without sacrificing rinse out performance
Enhanced Rinse-Out
Efficient rinsing between samples improves analytical reliability without wasting rinse solution

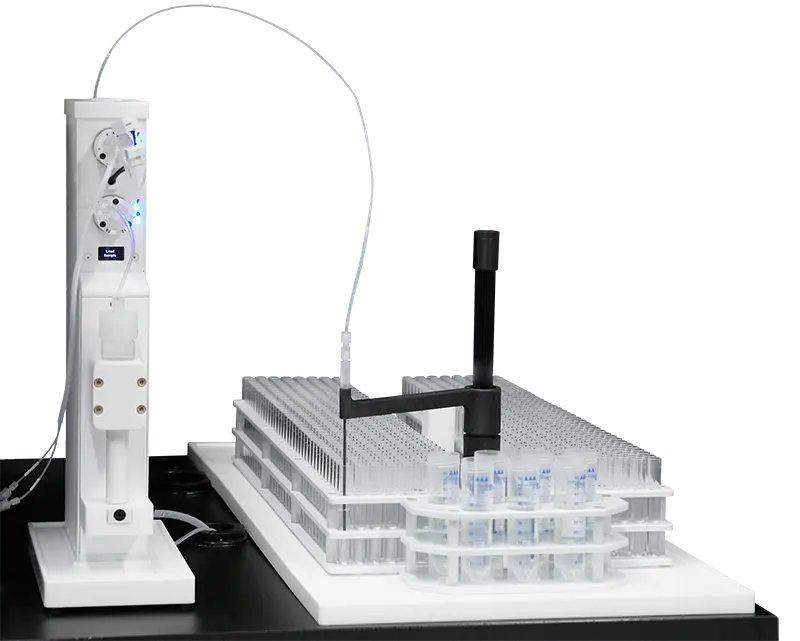

FASTFluidic FilterProbe Overview
High-Throughput Analysis with High Speed Rinse
Reduce Clogs & Maintenance. Maximize Throughput.
FASTFluidic FilterProbe from Elemental Scientific is a 4th generation valve injection system that redefines high-throughput ICP workflows. With multiple patented innovations, it uniquely delivers throughput equal to or exceeding conventional injection methods while eliminating the clogging and maintenance limitations that constrain existing systems.
- FilterProbe prevents particulates from entering the sample flowpath, reducing valve and nebulizer maintenance
- Syringe-driven backflushing automatically clears captured particulates during analysis
- Eliminate autosampler translation movement with mobile RidingRinse Station
- High capacity 4DXW Autosampler - more samples than a 6-rack autosampler
See It In Action
FASTFluidic FilterProbe rapidly loads samples through an inert free-flowing filter positioned at the top of the probe, catching all particulates and fibers without restricting sample loading. SampleSense 3 optically confirms successful sample loading and immediately injects the sample for analysis. During analysis, the FilterProbe is syringe-backflushed into RidingRinse, automatically removing retained particulates and clearing the probe for the next sample. Probe rinsing can be applied when required with minimal impact on sample-to-sample throughput.
Applications
FASTFluidic FilterProbe Applications
FASTFluidic FilterProbe is designed for ultra high-throughput ICP and ICPMS workflows across Soil, Oil, Mineral and Clinical laboratories.

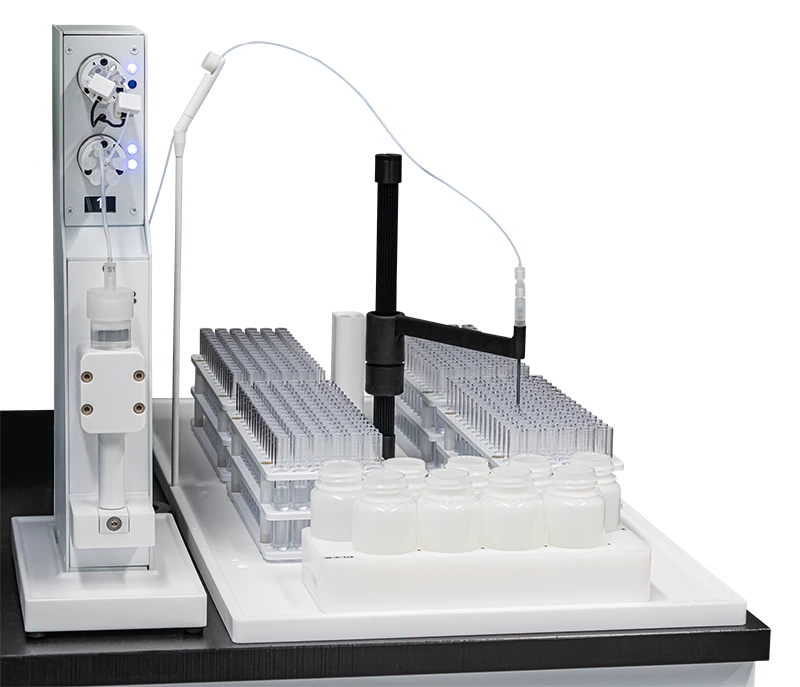

Agricultural Soil Analysis
Accurate determination of plant-available micronutrients in soil is necessary to assess whether levels are likely to limit crop growth. FASTFluidic FilterProbe Soil minimizes ICP carryover and improves rinse out, resulting in accurate agricultural soil micronutrient analysis without sacrificing high-throughput.
- >500x rinse out factor
- <10 seconds sample-to-sample
- ≤3 second integration time

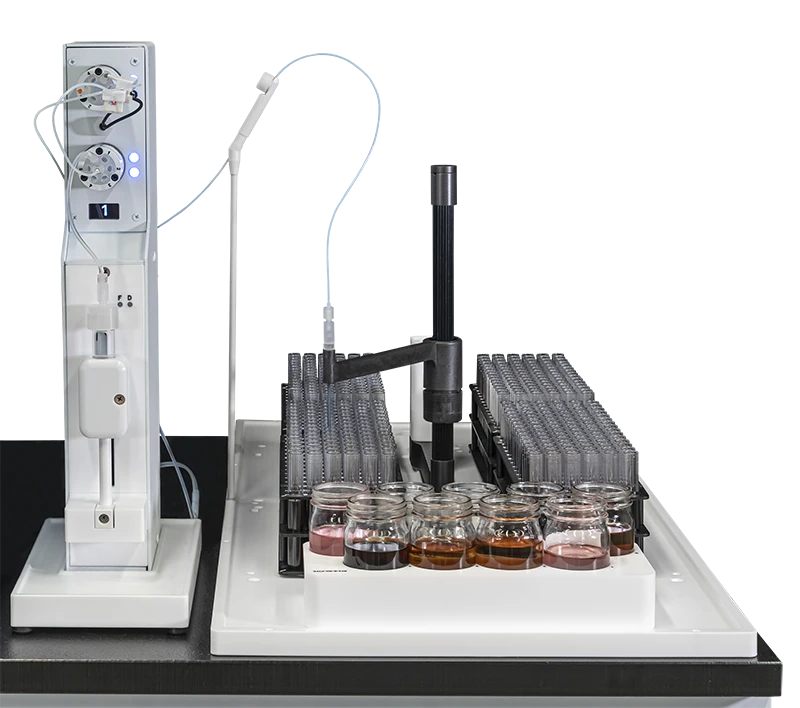

Oil and Lubricant Analysis
High-throughput ICP analysis of oils and lubricants can be prone to clogging and variability caused by sample settling and viscosity differences. FASTFluidic FilterProbe Oil solves these issues by preventing nebulizer and valve clogs, homogenizing samples immediately prior to analysis, and automatically adjusting sample loading and injection to accommodate viscosity and density variations.
- Inline, free-flowing filter catches particulates - preventing clogs
- Flow-controlled gas mixes samples immediately before analysis
- 15 seconds sample-to-sample
- SampleSense 3 accounts for varying sample densities and viscosities
Ore-Grade Gold Analysis
FASTFluidic FilterProbe effectively resolves the main throughput and reliability challenges in ore-grade gold analysis. By preventing particle-driven clogs, enabling rapid sample-to-sample time, and maintaining low carryover even in difficult matrices, the system delivers cleaner baselines, faster washout, and significantly higher operational uptime.
- 13 seconds sample-to-sample for 1000x Au rinseout (0.1%)
- Syringe-driven 5% HCl Rinse
- Backflushing CTFE FilterProbe prevents clogs
- RidingRinse accessed in <0.5 seconds
Features & Benefits
FASTFluidic FilterProbe Key Features
With several patented innovations, FASTFluidic FilterProbe is a unique and unmatched valve injection system - allowing your lab to maintain or exceed existing throughput requirements while delivering clog prevention, improved rinseout, and extended unattended runs.
Anti-Clogging FilterProbe with Backflush
- Small, inline, inert CTFE filter prevents particulates from entering sample flowpath and disrupting analysis
- Automatically syringe-backflushes the filter during analysis
- Reduces maintenance and extends analytical run times
RidingRinse Mobile Rinse Station
- Moves with the autosampler carriage, providing rinse station access in <0.5 seconds
- Eliminates wasted autosampler movements required for a conventional fixed rinse location
- Improve workflow efficiency with the expedited sample-to-sample time
4DXW Autosampler
- High-capacity autosampler supporting up to 560 samples - more than a 6-rack autosampler
- Compact footprint similar to four-rack autosampler
- Compatible with conventional racks and extended high-capacity DXW racks
- Integrates seamlessly with ESI automation and all ICP & ICPMS instruments
SampleSense 3
- Delivers intelligent, real-time sample detection to automatically trigger ICP or ICPMS analysis
- Adapts dynamically to varying sample viscosities and densities
- Detects and logs missed or incomplete sample loads with immediate error alerts
- Removes need for fixed timing parameters or sensor adjustments
Multiposition Magnetic SnapValve
- Patented magnetic design streamlines maintenance with cleaning that takes seconds
- Installs easily with snap-on, snap-off handling - no tools required
- User-friendly valves with labeled ports and position to minimize confusion
OneTouch Nebulizers
- Pre‑installed gas and sample lines cut to the precise length for fast, hassle‑free setup
- Chemically inert, ultra‑clean lines ensure strong, leak‑free connections
- Ready-to-use design delivers reliable performance in demanding conditions
Resources
FASTFluidic FilterProbe Application Notes & Videos
Explore our collection of application notes and other product resources to discover detailed experiment, techniques, and findings relevant for Soil, Oil, Mineral and Clinical Applications.
Agricultural Soil Analysis
- >500x Rinse Out Factor
- <10 Seconds Sample-to-Sample
- Clog-free Analysis
Oil and Lubricant Analysis
- Inline free-flowing filter catches particulates
- Syringe-driven backflush
- Clog-free Analysis
Ore-Grade Gold Analysis
- 13 seconds sample-to-sample for 1000x Au rinseout (0.1%)
- Syringe-driven 5% HCl Rinse
- Backflushing CTFE FilterProbe prevents clogs
- RidingRinse accessed in <0.5 seconds
4DXW Autosampler
- Up to 560 samples
- Narrower width than a 4-rack autosampler
- Compatible with ICP and ICPMS systems

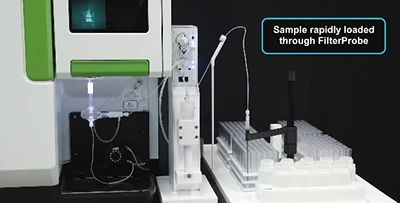

Agricultural Soil Video

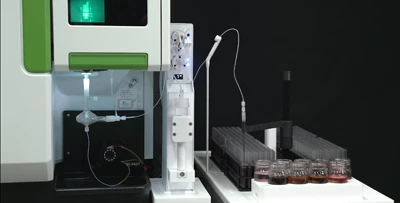

Wear Metals in Oils Video
Customer Service
Expert Support Every Step of the Way
At ESI, we believe in ensuring our client's success through great support. That's why our team will work closely with you throughout the entire process - from the first quote, to long after installation.
Before You Buy
Our team of automation experts will make sure every detail of FASTFluidic FilterProbe aligns with your workflow so you get exactly what you need.
After Purchase
We tailor the system's software methods to match your specific protocols, typically based on your lab's SOPs. You won't be left to figure it out - we'll build your methods for you.
At Installation
ESI experts provide hands-on training to your team, showing how to use the intuitive software and run your methods confidently from day one.
Continued Support
Long after installation, we continue to support you. Whether it's method updates, software questions, or workflow changes, our expert team is always just a call or email away.
Contact Us
Automate Your Lab with FASTFluidic FilterProbe
Have questions or need expert guidance on FASTFluidic FilterProbe?
We're here to help you navigate the advanced capabilities and applications of our products. Whether you're seeking technical support, product information, or customized solutions, reach out to our team of experts. Contact us today to discuss your labs needs and discover how FASTFluidic FilterProbe can power your lab.
About Elemental Scientific
Elemental Scientific develops high‑throughput sample introduction and liquid handling systems for ICP and ICPMS laboratories worldwide, with the new FASTFluidic product line focused on ultra‑fast, clog‑resistant analysis of challenging samples such as soils and oils. We provide specialized hardware and automation that increases speed, enhances precision, and improves data quality in semiconductor, environmental, industrial, clinical, and research laboratories. FASTFluidic reflects ESI’s mission to deliver integrated, low‑maintenance solutions that maximize instrument uptime, reduce operating costs, and elevate overall performance for trace metals and speciation measurements.
